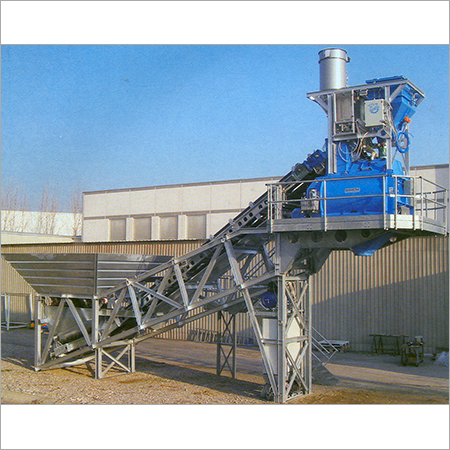

Mobile Concrete Batching Plant

Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
Product Code : AES 12
Brand Name : ARENA
Product Description

The ultimate technology mobile plants for on-site concrete production. One day erection time, Zero Foundation, high productivity. Four models are available with production capacity ranging between 25 up to 75 m3/hour.

JUMPER is Right Choice :

  • Transport on standard trucks. No Special equipments or permits required
  • The heavy duty, solid structure for the mixer and aggregate storage, provides a stable support typically only found on stationary plants.
  • The aggregate section is designed as a square containing weighing devices, and affordable support structure (if applicable ) within its limits.
  • A uniquely designed mixer platform, which includes the patented fold-able legs.
  • During transport the mixing platform supports the mixer, as well as the foldable structure for the belt conveyor.
  • The mixer support structure is equipped to support the cement, water and additive dosing units on top of it. With the pre-wiring of electrical and pneumatic equipment. A short install time is guaranteed.
  • The JUMPER is delivered in 4 different versions, with capacity from 25-75m3 per hour integrating (Depending on model) the MSO twin shaft or SUN planetary mixers.

Specification :

Model Jumper

Unit

750

1500

2000

2500

Concrete output

(m3/h)

25

50

60

75

Mixer

(type)

SUN 750

MOS 1500 HL

MSO 2000 HL

MSO 2500 HL

Mixer Capacity

(m3)

0.5

1

1.25

1.7

Aggregates Storage

(m3)

20-30-50

50

50

50-70

Aggregates Compartments

(n)

4

4

4

4

Aggregates weighing hopper capacity

(m3)

1.8

2.4

3.0

3.4

Cement types

(n)

3

3

3

3

Cement screw rate

(ton/h)

25

60

60

60

Cement Weighing hopper capacity

(Lt)

300

700

700

1000

Water weighing tank Capacity

(Lt)

200

350

350

600

Power rating

(kW)

48

80

95

110

Voltage


400V (+ 5%), 50 Hz(+ 3%)
