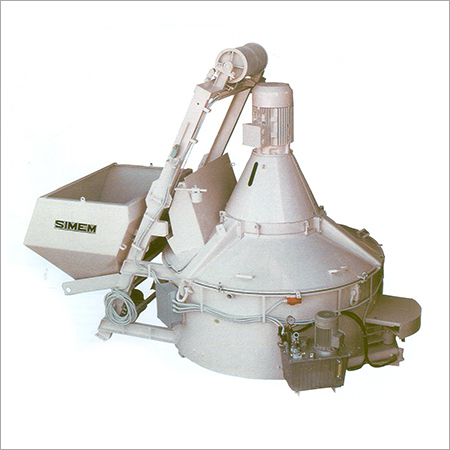

Planetary Mixer

Planetary Mixer
Planetary Mixer
Product Code : AES 14
Brand Name : SUN
Product Description
{"

Planetary pan type mixers, to be integrated into mixing plants, for high quality concrete, prefect for precast production. Five models are available with output compacted capacity ranging between 300 ltr. Up to 2000 lt.

Specification :

Model

Unit

450 Lt

750 Lt

1500 Lt

2500 Lt

3000 Lt

Dry Filling Capacity

Lt

450

750

1500

2500

3000

Compacted Concrete - Output

Lt

300

500

1000

1700

2000

Mixing Time

Sec

30-90

30-90

30-90

30-90

30-90

Discharge Time

Sec

20-30

20-30

20-30

20-30

20-30

Maximum Aggregate Size

mm

40

40

40

40

40

Mixing Motors

kW

11

18.5

44

75

90

Mixing Stars

n

1

1

2

2

2

Central Mixing Paddles

n

2

2

2+2

2+2

2+2

Lateral Arms

n

1

1

2

2

2

Lateral Scraping Paddles

n

2

2

2+2

2+2

2+2

Hydraulic Unit Motor

kW

1.5

1.5

2.2

2.2

2.2

Loading Skip Motor

kW

4

7.5

11

18.5

22

Skip Speed

Mts/Min

24

24

24

24

24

Skip Capacity

Lts

450

750

1500

2500

3000

Net Weight Without Skip

Kg

1850

2100

5000

7200

7500

Net Weight With Skip

Kg

2400

2750

6500

9000

9400


Dimensions

Model

450 Lt

750 Lt

1500 Lt

2500 Lt

3000 Lt

A

mm

2170

2960

3590

4470

4470

B

mm

1910

2250

2800

3350

3600

C

mm

2320

2410

3150

3980

3980

D

mm

1860

2260

2770

3270

3270

E

mm

2830

3580

4350

5470

5470

F

mm

1530

1919

2441

2945

2945

G

mm

2210

2700

3490

3800

3950

H

mm

2380

3260

3980

5000

5000

I

mm

2050

2570

3160

3800

3800

","

We hold expertise in manufacturing and supplying superior quality SUN Planetary Mixer. Manufactured using optimum quality raw material and advanced technology as per international quality standards, these SUN Planetary Mixers are well-reckoned in the market for their sturdy construction, excellent performance, trouble free operation, easy operation and longer service life. Planetary pan type mixers, to be integrated into mixing plants, for high quality concrete, prefect for precast production. Five models are available with output compacted capacity ranging between 300 ltr. Up to 2000 liters.



Features:



  • Unmatched performance
  • Easy to operate
  • Robust body
  • Low maintenance

Specification :

Model

Unit

450 Lt

750 Lt

1500 Lt

2500 Lt

3000 Lt

Dry Filling Capacity

Lt

450

750

1500

2500

3000

Compacted Concrete - Output

Lt

300

500

1000

1700

2000

Mixing Time

Sec

30-90

30-90

30-90

30-90

30-90

Discharge Time

Sec

20-30

20-30

20-30

20-30

20-30

Maximum Aggregate Size

mm

40

40

40

40

40

Mixing Motors

kW

11

18.5

44

75

90

Mixing Stars

n

1

1

2

2

2

Central Mixing Paddles

n

2

2

2+2

2+2

2+2

Lateral Arms

n

1

1

2

2

2

Lateral Scraping Paddles

n

2

2

2+2

2+2

2+2

Hydraulic Unit Motor

kW

1.5

1.5

2.2

2.2

2.2

Loading Skip Motor

kW

4

7.5

11

18.5

22

Skip Speed

Mts/Min

24

24

24

24

24

Skip Capacity

Lts

450

750

1500

2500

3000

Net Weight Without Skip

Kg

1850

2100

5000

7200

7500

Net Weight With Skip

Kg

2400

2750

6500

9000

9400


Dimensions

Model

450 Lt

750 Lt

1500 Lt

2500 Lt

3000 Lt

A

mm

2170

2960

3590

4470

4470

B

mm

1910

2250

2800

3350

3600

C

mm

2320

2410

3150

3980

3980

D

mm

1860

2260

2770

3270

3270

E

mm

2830

3580

4350

5470

5470

F

mm

1530

1919

2441

2945

2945

G

mm

2210

2700

3490

3800

3950

H

mm

2380

3260

3980

5000

5000

I

mm

2050

2570

3160

3800

3800

"}
