Home » Products » Twin Shaft Mixer » Twin Shaft Mixer

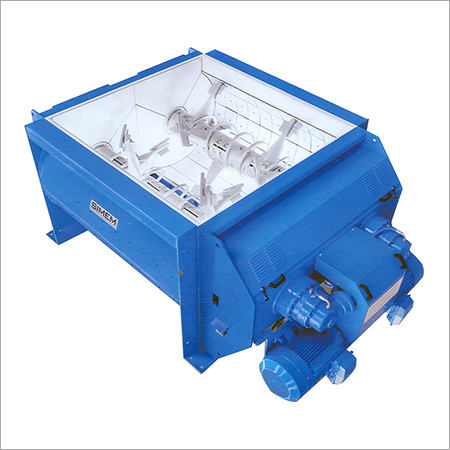

Twin Shaft Mixer

Twin Shaft Mixer
Twin Shaft Mixer
Product Code : AES 13
Brand Name : MSO
Product Description
{"

The most advanced mixing technology, flexible to any kind of concrete, from wet to zero slump, suitable for aggregate up to 200 mm diameter. Nine models are available with compact output capacity ranging from 800 lt. Up to 9000 lt.

Specification :

Model

Unit

1500

2000

2500

3000

3000S

3700

4500

6000

6000S

9000

12000

14000

Dry filling Capacity

Lt

1500

2000

2500

3000

3000

3700

4500

6000

6000

9000

12000

14000

Compacted Concrete - Output

Lt

1000

1250

1700

2000

2250

2500

3000

4000

4500

6000

8000

9000

Compacted Concrete - Output

Kg

2400

3000

4080

4800

5400

6000

7200

9600

10800

14400

19200

21600

Mixing Time Wet Batch

Sec

30

30

30

35

35

35

35

35

35

40

40

40

Mixing Time Dry Batch

Sec

60

60

60

60

60

60

60

60

60

60

60

60

Discharge Time Wet Batch

Sec

10

10

10

10

10

10

10

10

10

10

10

10

Discharge Time Dry Batch

Sec

12

12

12

12

12

12

12

12

12

12

12

12

Standard Max Aggregate Size

mm

80

80

80

80

80

90

90

90

90

100

100

100

Dam Version Max Aggregate Size

mm

120

120

120

120

120

150

150

150

150

180

180

180

Mixing Motors

kW

1 x37

2x22

2x30

2x37

2x44

2x44

2x55

2x75

2x90

4x55

4x75

4x90

Hydraulic Discharge Motor

kW

1.5

1.5

1.5

1.5

1.5

2.2

2.2

2.2

2.2

7.5

7.5

7.5

Loading Skip Belt Motor

kW

11

22

22

22

22

37

37

55

55

-

-

-

Skip Speed

Mt/min

24

24

24

24

24

25

25

22

22

-

-

-

Net Weight Without Skip

Kg.

5500

5700

6000

6900

6900

9100

10090

11650

11650

17500

24000

26200

Net Weight With Skip

Kg.

6500

6800

7200

8200

8200

14700

15690

17550

17550

-

-

-

","

Leveraging upon our rich industry experience, we are offering our clients impeccable quality MSO Twin Shaft Mixer. The mixer provided by us is manufactured using superior quality components and progressive technology under the surveillance of our skilled professionals. The most advanced mixing technology, flexible to any kind of concrete, from wet to zero slump, suitable for aggregate up to 200 mm diameter. Nine models are available with compact output capacity ranging from 800 lt. Up to 9000 lt. Well known in the market for their rust proof finish,   fast speed and excellent strength, these MSO Twin Shaft Mixers are popular in the market.



Features



  • Robust construction
  • Less maintenance
  • Perfect mixing
  • Longer service life
